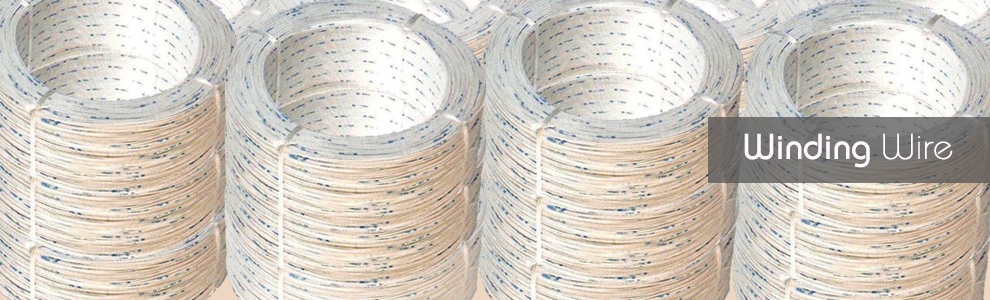

Copper Winding Wire

.........................................................................................................................................................................................................................................................................................................................................

Copper Winding Wire

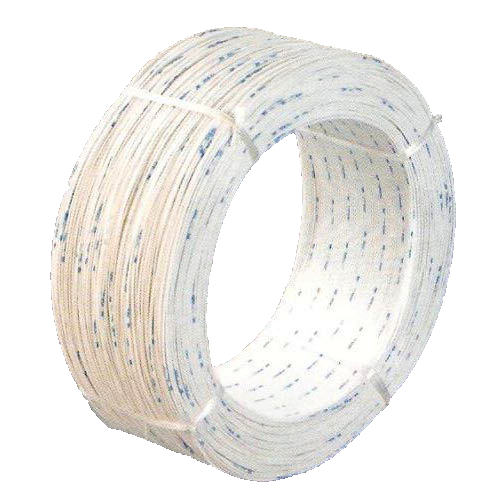

Winding Wires manufactured by us have an outstanding Electrical, Mechanical, Thermal and Chemical properties. Our Winding Wires not only fulfill the requirements of all available standards but even better in many respects. Winding Wires manufactured by us are tear resistant because of their bi-axial orientation. The multiple layer construction of these wires insures high dielectric quality of insulation. The insulation also adds significantly to the tensile strengths of the wire which supports the wire at every point whenever excessive stretching occurs. These winding wires have passed test standards of IS: 8783 -2000 Part IV Sec -3.

Size m.m.	Resistance ohm/Km	Elongation (%)	250V m.m.	Weight per K.m	500V m.m.	Weight per K.m	1100V m.m.	Weight per K.m	3000V m.m.	Weight per K.m
0.40	136.63	30	0.150	1.30	0.200	1.50	0.30	1.90	0.40	2.30
0.50	87.96	31	0.150	2.05	0.200	2.25	0.30	2.65	0.40	3.05
0.60	60.92	32	0.150	2.85	0.200	3.05	0.30	3.45	0.40	3.85
0.70	44.78	33	0.150	3.85	0.200	4.05	0.30	4.45	0.40	4.85
0.80	34.34	33	0.150	5.00	0.200	5.20	0.30	5.60	0.40	6.00
0.90	27.10	35	0.150	6.20	0.225	6.50	0.30	6.80	0.40	7.20
1.00	21.96	36	0.150	7.70	0.225	8.00	0.30	8.30	0.40	8.70
1.10	18.15	37	0.175	9.30	0.225	9.50	0.30	9.80	0.40	10.20
1.20	15.26	38	0.175	10.90	0.225	11.10	0.30	11.40	0.40	11.80
1.30	12.96	38	0.175	12.80	0.225	13.00	0.30	13.30	0.40	13.70
1.40	11.20	38	0.175	14.70	0.225	14.90	0.35	15.20	0.45	15.60
1.50	9.74	40	0.175	16.90	0.250	17.20	0.35	17.60	0.45	18.00
1.60	8.58	40	NA	-	0.250	19.60	0.35	20.00	0.45	20.40
1.70	7.60	40	NA	-	0.250	22.00	0.35	22.40	0.45	22.80
1.80	6.79	40	NA	-	0.250	24.50	0.35	24.90	0.45	25.30
1.90	6.07	40	NA	-	0.250	27.00	0.35	27.40	0.45	27.80
2.00	5.49	40	NA	-	0.250	30.00	0.35	30.40	0.45	30.80
2.10	4.98	42	NA	-	0.250	32.80	0.35	33.20	0.45	33.60
2.20	4.54	42	NA	-	0.250	35.80	0.35	36.20	0.45	36.60
2.30	4.15	42	NA	-	0.300	39.80	0.40	40.20	0.50	40.60
2.40	3.81	42	NA	-	0.300	42.80	0.40	43.20	0.50	43.60
2.50	3.51	42	NA	-	0.300	47.10	0.40	47.50	0.50	47.90
2.60	3.25	43	NA	-	0.300	-	0.40	-	0.50	-
2.70	3.01	43	NA	-	0.300	-	0.40	-	0.50	-
2.80	2.80	43	NA	-	0.300	-	0.40	-	0.50	-
2.90	2.61	43	NA	-	0.300	-	0.40	-	0.50	-
3.00	2.44	43	NA	-	0.300	-	0.40	-	0.50	-
3.10	2.28	43	NA	-	0.300	-	0.40	-	0.50	-
